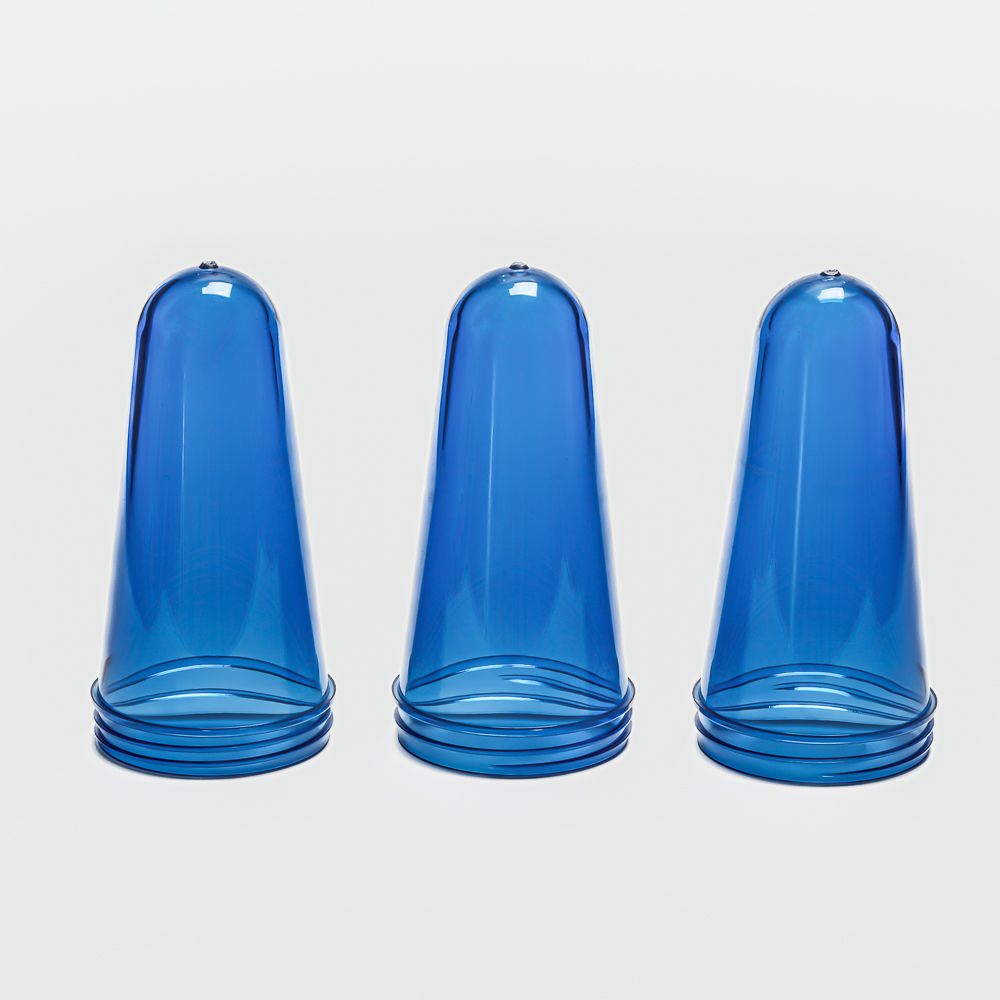

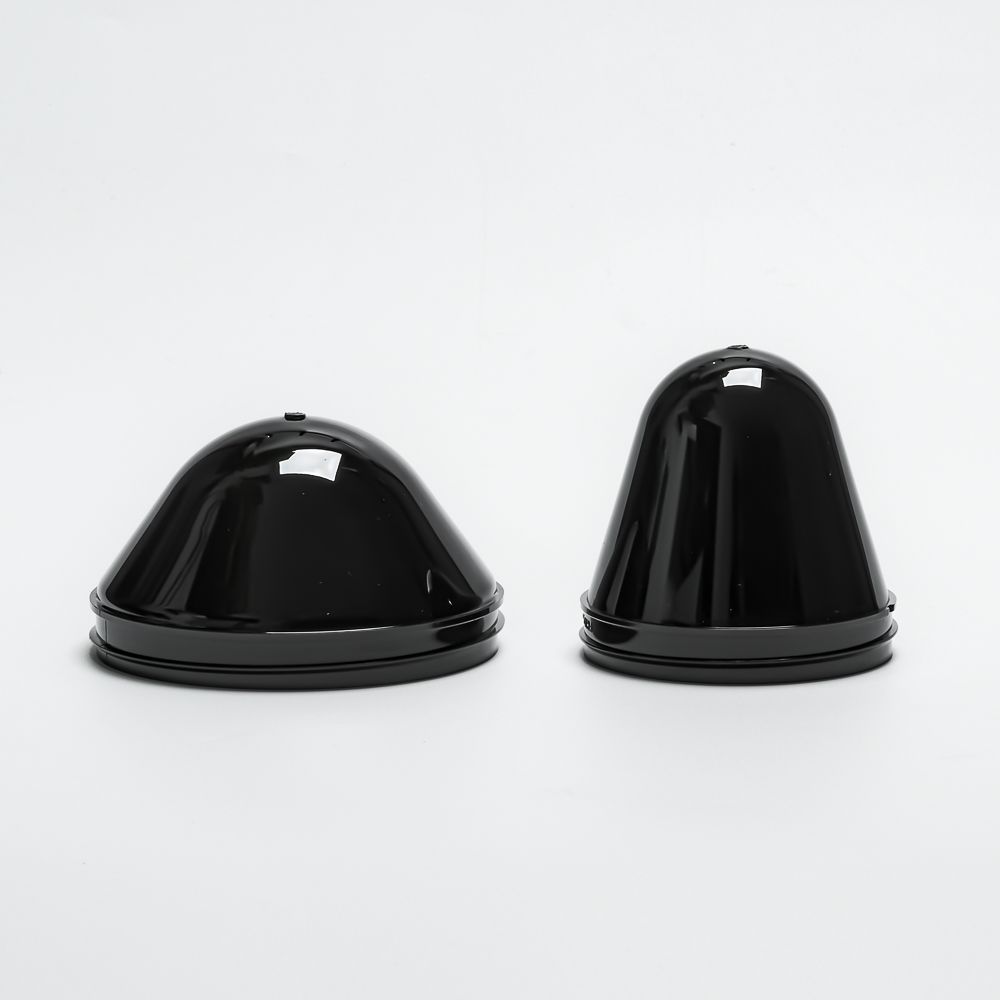

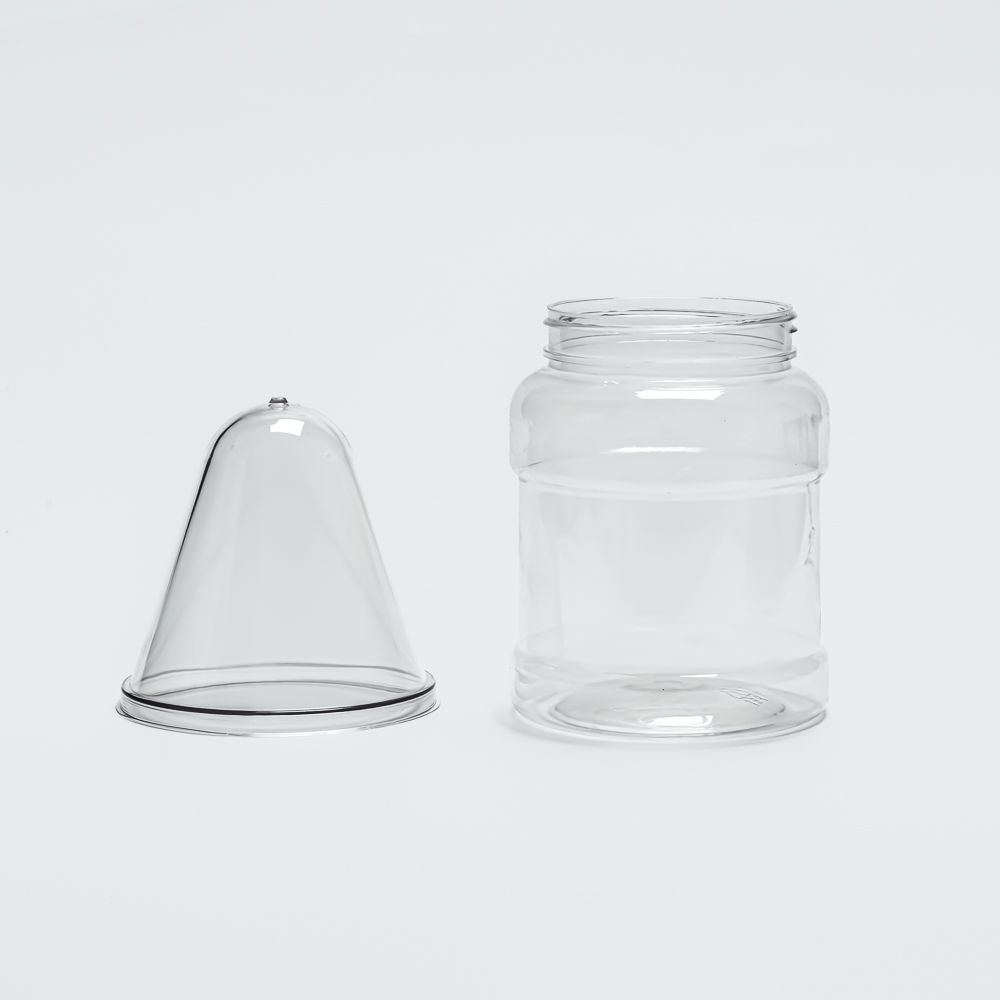

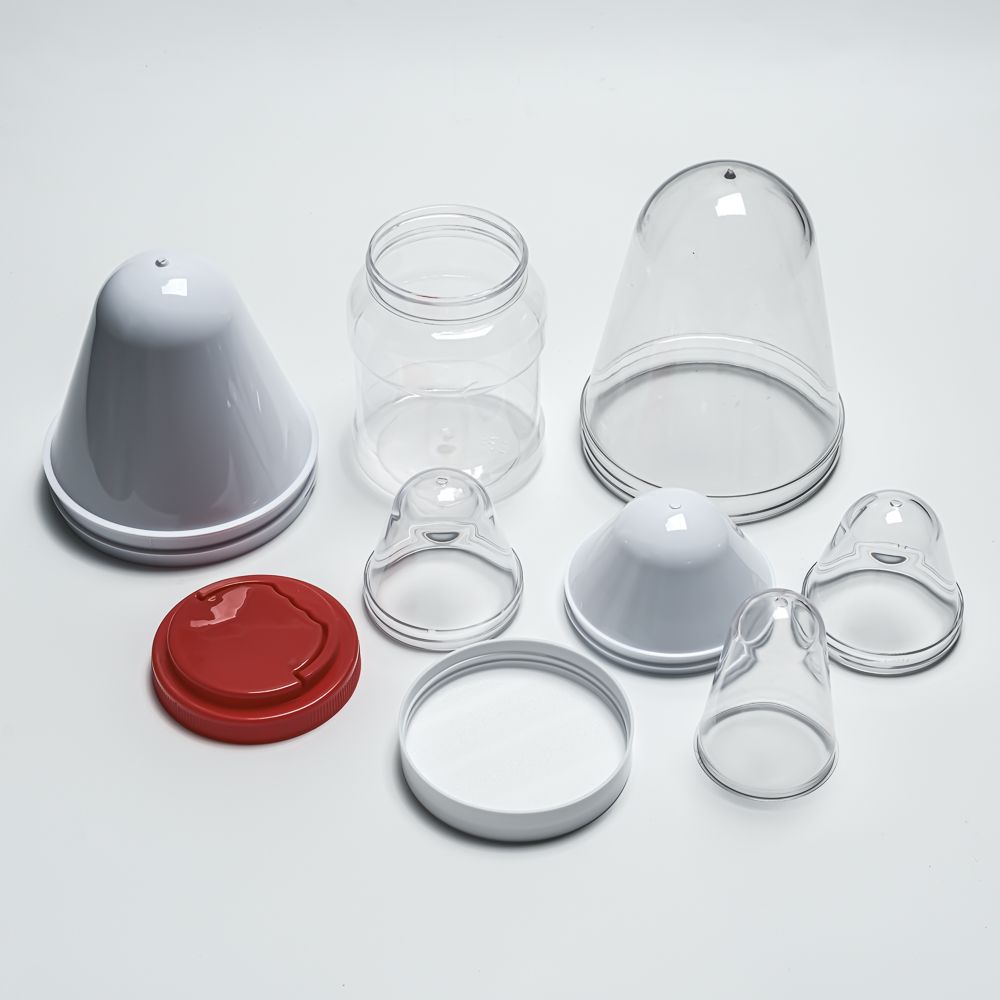

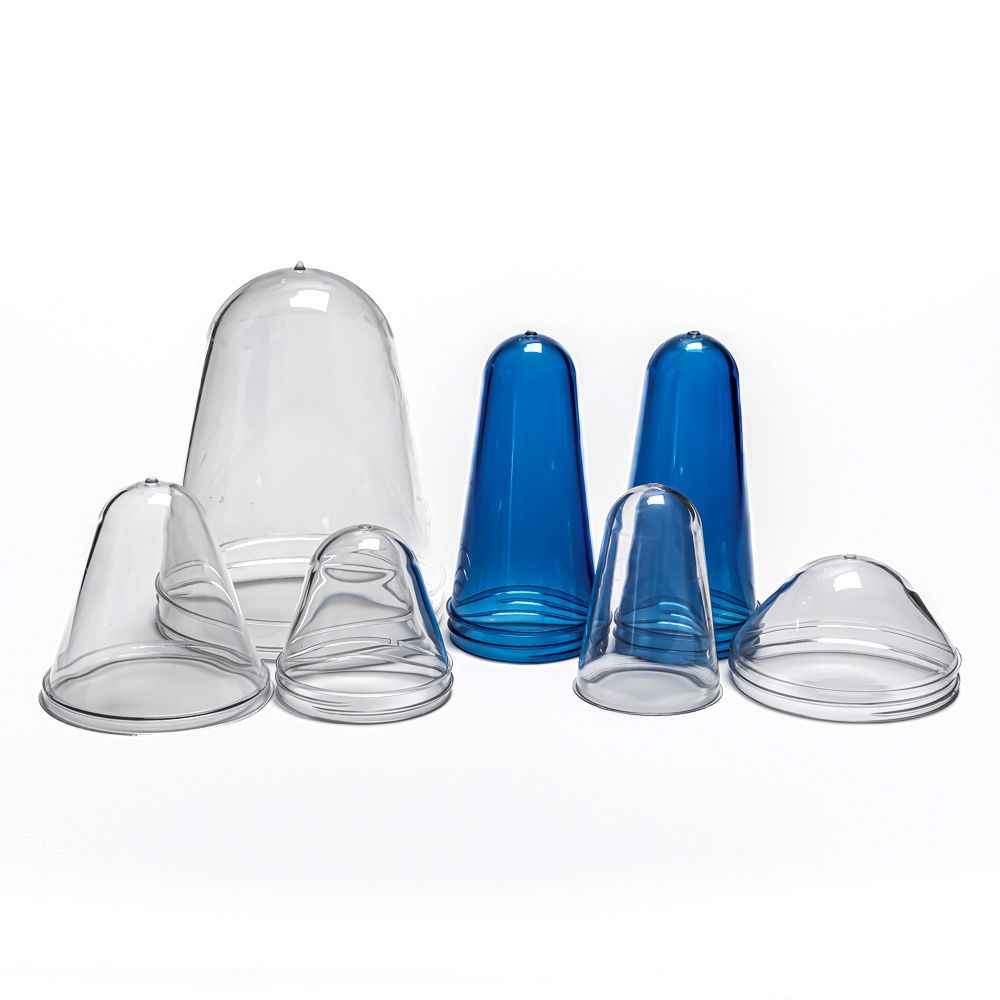

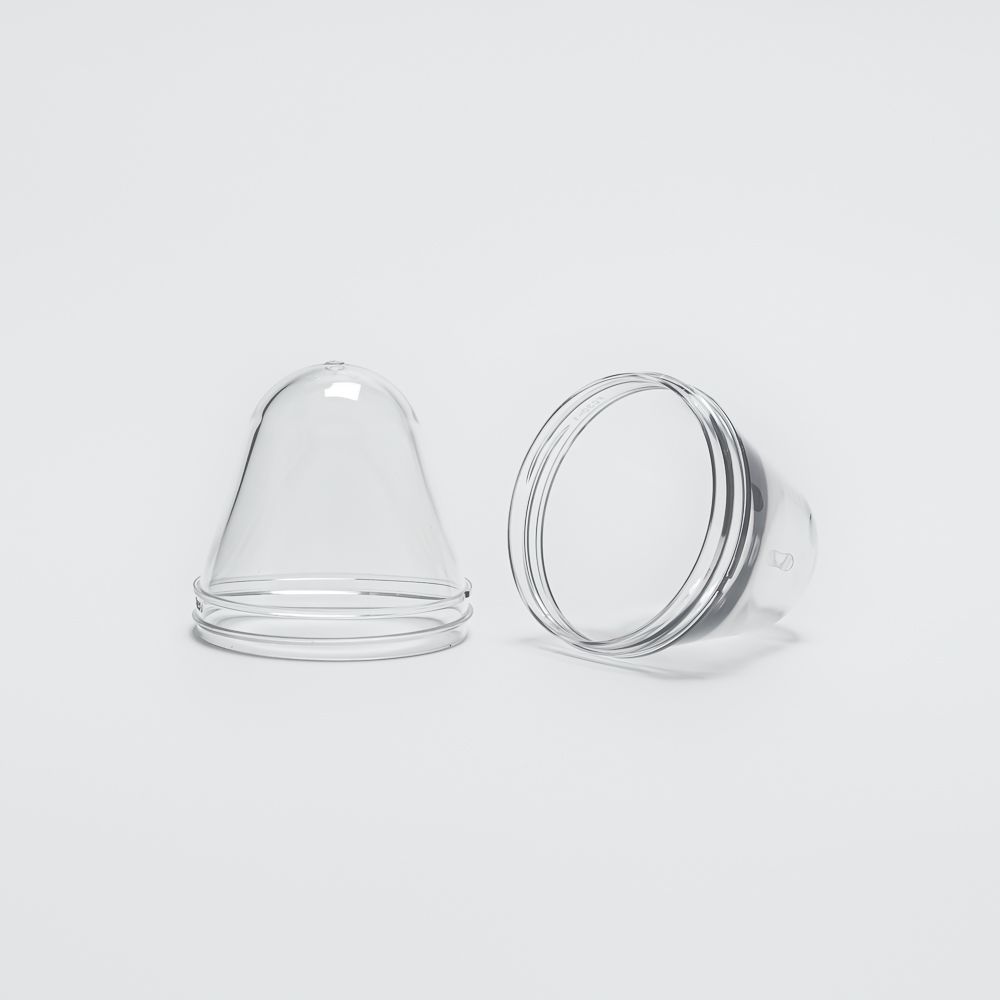

Product Overview
Our Wide Mouth PET Preforms are designed for manufacturing wide-mouth plastic jars and containers used in food packaging, candy storage, nut packaging, grain storage, and other suitable applications.
With a wide neck opening and customizable preform specifications, these PET jar preforms provide a practical starting point for producing plastic containers with convenient filling, easy access, and compatible screw-cap closures.
As a wide mouth PET preform manufacturer, we offer customized solutions based on your target jar design, neck finish, preform weight, color, and blow molding requirements. Whether you need standard wide-mouth preforms or custom PET preforms for a specific packaging project, we can work with your technical specifications to develop a suitable solution.
Key Features
- Wide-mouth neck designs for plastic jar manufacturing
- Multiple neck diameters and preform weight options
- Customizable color and preform dimensions
- Matching cap and closure options based on neck specifications
- Support for custom preform development and mold requirements
- Suitable for bulk orders and B2B packaging supply
Technical Specifications
| External thread | weight/g (g) | The lid |
|---|
| 128 | 140、150、215 | Portable cover |
| 118 | 80、85、92、97、110、120、135、140、160 | Flat Cover、Portable cover、Double Portable cover、Inner Cover |
| 108 | 60、70、80、92、103、110、122 | Portable cover |
| 105 | 55 | Flat cover |
| 100 | 33、36、46、51、56、61 | Flat cover |
| 95 | 42、46、50、55、60、65、70、80、85、90 | Portable cover、Surface matte & polished cover、Inner Cover |
| 85 | 40、45、50、55、60、65、70 | Portable cover、Surface matte & polished cover |
| 83 | 21、24、30、35、40、46、51、60 | Flat Cover、Aluminium Cover |
| 78 | 30 | Flat cover |
| 75 | 32、40、45 | Flat Cover、Portable cover |
| 72 | 26 | Flat Cover |
| 69 | 22、25、28、30、32、36、40 | Flat Cover、Portable cover、Inner Cover |
| 65 | 29 | Flat Cover |
| 62 high neck | 25、29、39、36、41、46 | Flat Cover、Vertical stripes cover、Aluminium Cover |
| 62 low neck | 21、23、28、36 | Flat Cover |
| 58 | 21、23、25、29 | Flat Cover |
| 54 | 17、20 | Flat Cover |
| 52 | 13、21、23、25 | Flat Cover |
| 50 ring-pull can | 17 | Easy pull Cover |
| 65 ring-pull can | 24 | Easy pull Cover |
| 75 ring-pull can | 18 | Easy pull Cover |
| 85 ring-pull can | 26、30、35、40 | Easy pull Cover、Dust Cover |
| 100 ring-pull can | 41、46、51、56 | Easy pull Cover、Dust Cover |
| 70 Anti-theft bottle | 40 | Anti-theft Cover |
Technical Notes
- Neck dimensions should match the intended cap or closure.
- Preform weight should be selected according to the target jar capacity, wall distribution, and mechanical requirements.
- Final jar dimensions depend on the preform design, blowing mold, and processing conditions.
- Custom specifications can be evaluated according to your drawings, samples, and production requirements.
Contact us for a detailed wide mouth PET preform specification sheet and model recommendations.
Applications
Wide mouth PET preforms can be used to manufacture plastic jars for:
- Candy and confectionery packaging
- Nut and snack containers
- Grain and dry food storage
- Other suitable household and general packaging applications
Food-contact suitability depends on the selected material and applicable regulations.
Customization Options
Neck Size and Finish
Select an available neck diameter or submit your technical drawing for evaluation of a custom neck design.
Preform Weight
Choose the required gram weight based on your target container size, material distribution, and performance requirements.
Color Customization
Clear and other available color options can be discussed according to your order quantity and production requirements.
Preform Dimensions
Height, body dimensions, and other relevant features can be evaluated against your target jar design and blowing mold.
Cap and Closure Matching
Provide your existing cap specifications so that neck compatibility can be checked before production.
Custom Mold Development
For new jar designs or non-standard specifications, mold development feasibility can be evaluated based on the product drawing, sample, or project brief.
How to Start a Custom Project
- Share your target jar capacity and application.
- Provide the required neck finish, weight, color, and technical drawing if available.
- Confirm the blowing machine and mold requirements.
- Review the proposed specifications and sample arrangements.
- Approve the specifications before mass production.
Send Us Your Drawing or Sample Requirements to Start Your Custom PET Preform Project.
Packaging & Delivery
Packaging and shipping arrangements can be confirmed according to order quantity, product specifications, and destination.
Contact us to confirm available models, minimum order quantity, production lead time, and shipping options.
Manufacturing & Quality Control
Our production process includes PET material preparation, injection molding, cooling, demolding, and quality inspection.
Inspection can cover preform weight, dimensions, neck finish, and visual appearance according to agreed specifications. Samples can be evaluated before mass production.
